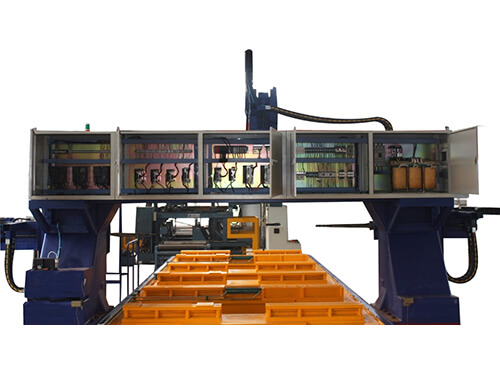

TBD Series Gantry Movable CNC Drilling Machine

Home » Large Steel Plate Processing Machines » TBD200/3, TBD1010 Gantry Moveable Cnc Beams Drilling Line

Applicable Industry of TBD Series Gantry Movable CNC Drilling Machine

Used for drilling of lager size H-beams and cased beams.

Main Description of TBD Series Gantry Movable CNC Drilling Machine

1. Three slipway type CNC drilling spindles respectively on the up, left & right, can drill holes simultaneously.

2. CNC & PLC systems, CRT display.

3. Eight CNC axes.

4. Coordinates of drilling can be directly transferred to CAD/CAM.

5. Automatic chip removal, circular coolant.

6. Laser alignment conveniently.

Technical Parameters of TBD Series Gantry Movable CNC Drilling Machine

Model		TBD200/3	TBD1010
Workpiece size	Max. section size (W×H) (mm)	2000×1000	1000×1000
	Min. section size (W×H) (mm)	1000×400	300×300
	Max. length (m)	16	2~20
Drilling unit	Type	CNC slipway type	CNC slipway type
	Quantity	3	3
	Max. drilling dia. (mm)	Φ50	Φ50
	Rotation speed (r/min)	120~560 Frequency conversion	120~560 Frequency conversion
	Axial stroke (mm)	600	600/400/400
	Feeding speed (mm/min)	0~4000	0~4000
	Motor power of spindle (kW)	5.5 (×3 )	5.5 (×3 )
	Power of servo motor (kW)	1 (×3 )	1 (×3 )
Movement of gantry (X axis)	Stroke (m)	16	20.5
	Max. moving speed (m/min)	8	8
	Power of servo motor (kW)	2 (×2 )	2 (×2 )
Transverse movement of vertical drilling unit (Y axis)	Stroke (mm)	2000	1000
	Max. moving speed (m/min)	10	8
	Power of servo motor (kW)	1	1.5
Up and down movement of left/right drilling unit (Z,W axes)	Stroke (mm)	1000	1000
	Max. moving speed (m/min)	10	8
	Power of servo motor (kW)	1.5 (×2 )	1.5 (×2 )
Hydraulic pump	Motor power (kW)	2.2+0.75	2.2+0.75
Swarf-converor	Motor power (kW)	0.75 (×2 )	0.75 (×2 )
Cooling pump	Motor power (kW)	0.45	0.45
Power supply	Total power (kW)	35	40
