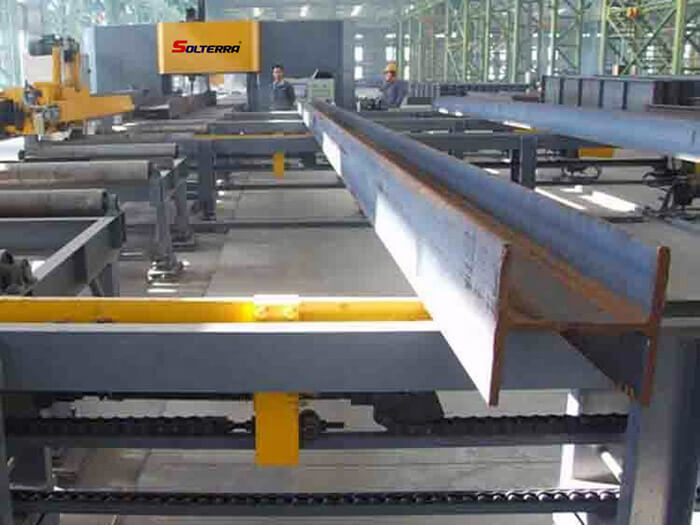

This CNC high speed beam drilling machine is used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform industries.
1. Work-piece: H U Beams.
2. Functions: Drilling, Marking (Optional Unit).
3. Quantity of drilling head: Three (Top, Left and Right).
4. Feeding mode: Automatic NC Feeding carriage --- High feeding speed, High precision.
• Seven CNC axis control
• Simultaneously drilling on three sides of H-beam.
Direct conversion between CAD and CAM is available.
• Ideal equipment used for steel structure processing.
• With multi-point hydraulic supporting blocks to avoid the web deformation.
• Roller feeding and length-ways CNC measurement are used.
• Drilling heads on two sides are different. One is fixed, and the other one can move horizontally, so that different web heights can be satisfied.
• The use of imported spray cooling system can prolong life of the drills.
• All spindles adopt the self-controlled travel technology, each spindle can do movements by horizontal coordinates and realize auto drilling feeding, which ensures drilling simultaneously on three sides of H-beam.
| Model | THD1000 | THD1250 | |
| H beam size (Web Width x flange height) mm | Max. | 1000x500 | 1250x600 |
| Min. | 150 x 75 | 150 x 75 | |
| Length (mm) | Auto feeding | ≥2700 | |
| Manual feeding | ≥610 | ||
| Max. workpiece weight (kg) | 10000 | 10000 | |
| Thickness of web & flange (Max.) | 80 | 80mm | |
| Drilling diameter (mm) | Carbide drill | Φ32mm | Φ32mm |
| High-speed steel | Φ40mm | Φ40mm | |
| Number of Spindles | Total: 3 spindles(at top, left, and right) | ||
| Rotating speed (Stepless speed adjustment) (r/min) | 200~3000 | 200~3000 | |
| Number of axis | 7 | 7 | |
| Feeding speed (m/min) | 0-5m | 0-5m | |
| Overall dimension (L x W x Hmm) | 4700 x 2600x 3520 | ||
| Weight (Kg) | ≈9000 (Appr.) | ||
