Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
• Good rigidity, compact structure, optimal workpiece arrangement and high using rate of workpiece.
• Marking, punching and shearing are automatically operated with high efficiency.
• Friendly computer interface can show workpieces' figure, easy for operation.
• Easy programming, only need to input the data of workpiece, including size, hole diameter, stadia accuracy and quantity. Or use the programming data created by lofting software.
• With CNC and serve motor achieves it high efficiency and stable working accuracy.
• The key hydraulic pneumatic and electrical elements are all imported from Germany, Japan, and South Korea etc.
• Equipped with self-diagnostic function.
| Model | APL2532 | APL3640 |
| Function | Drilling & Marking | Drilling & Marking |
| Angle Size (mm) | 140×140×10～250×250×32 | 140×140×10～360×360×40 |
| Material | Q235 or Q460 | Q235 or Q460 |
| Nominal Marking Power (kN) | 1040 | 1040 |
| No. of character group | 1 | 1 |
| Length of Workpiece (m) | 12/14 (optional) | 12/14 (optional) |
| Character dimension (mm) | 14×12×19 (According to demands of customers) | |
| No. of character in each character group (piece) | 15 | 15 |

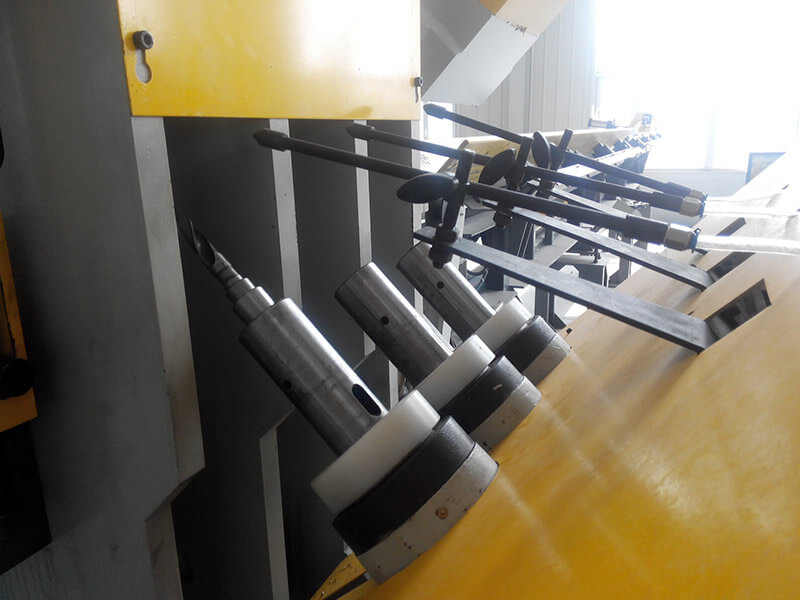

| Number of drill on each side | 3 | 3 |
| Main Shaft Speed (r/min) | 180-560 (Stepless adjustable) | 180-560 (Stepless adjustable) |
| Diameter of drilling hole (mm) | Ф17.5-Ф40 | Ф17.5-Ф40 |
| Number of CNC Axis | 3 | 3 |
| Angle steel Feeding speed (m/min) | 40 | 40 |
| Programming model | Keyboard enter, USB interface input, Tower lofting software input | |
| Processing precision | Meeting the requirement of GB/T 2694-2010 | |
| Net Weight (kg) | 16500 | 18500 |
