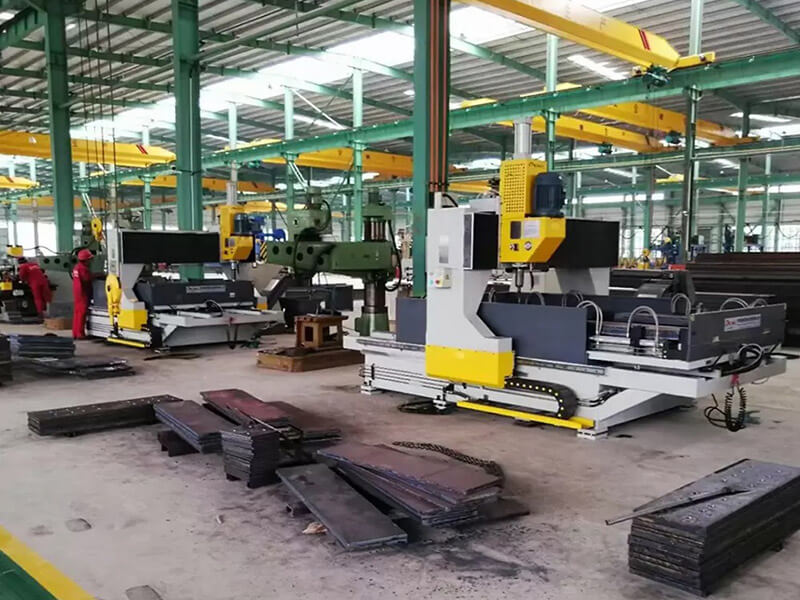

Special CNC machine for drilling connection boards and base plates of steel structure, tower, bridge and other industries.
• High efficiency and stable working accuracy, Easy to operate.
• The machine is mainly composed of base, gantry, drilling unit, exchangeable worktable, chip removal system, electric system, hydraulic system and centralized lubricating system etc.
• This machine used stroke self-controlled drilling unit. Rapid feeding,working feed and rapid withdrawing are transformed automatically without presetting any parameters manually such as the length of the drill and the thickness of the workpiece before operating, so that the machine is easy to operate.
• Workpieces are clamped tightly by hydraulic clamps, For small work pieces the machine can clamp four groups together so as to reduce the preparation period of production and increase the efficiency.
• The software of host computer is humanized designed. The machine's running data can be shown directly on the real time monitor and I/O monitor interfaces.
• The machine uses centralized lubricating system to make sure all the function parts being well lubricated thus improve the performance and extend the lifetime of the machine.
| Model | PLD2012 | PLD2016 | PLD3016 | |
| Size of workpiece | Thickness of workpiece (mm) | (Max)100 | (Max)100 | (Max)100 |
| Width x Length (mm) | 1200×2000 (One Piece) | 1600×2000 (One piece) | 1600×3000 (One piece) | |
| 2000×1000 (Two pieces) | 1600×1000 (Two pieces) | 1600×1500 (Two pieces) | ||
| 600×1000 (Four pieces) | 800×1000 (Four pieces) | 800×1500 (Four pieces) | ||
| Drilling spindle | Quick-change drill chuck | Morse 3# 4# | ||
| Diameter of drilling head (mm) | Φ12-Φ50 | |||
| The mode of speed adjustment | Transducer stepless speed adjustment | |||
| Rotate speed (r/min) | 120-560 | |||
| Stroke (mm) | 180 | 240 | ||
| Processing feeding | Hydraulic stepless speed adjustment | |||
| Hydraulic clamping | Thickness of clamping (mm) | 15-80 | 15-80/35-100 | |
| Quantity of clamping cylinder | 12 | |||
| Clamping power (kN) | 7.5 | |||
| Start-up clamping | Foot-switch | |||
| Cooling fiuid | Mode | Forcing cycle | ||
| Volume (L) | Appr 100 | |||
| Hydraulic system | Clamping pressure (MPa) | 7.5 | ||
| Feeding pressure (MPa) | 2 | |||
| Volume of oil tank (L) | 120 | |||
| Air Pressure | Source of compressed air (MPa) | 0.4 | ||
| Motor | Spindle (kW) | 5.5 | ||
| Hydraulic pump (kW) | 2.2 | |||
| Cooling pump (kW) | 0.25 | |||
| Chip removal motor (kW) | 0.4 | |||
| Servo system of X axis (kW) | 1.5 | |||
| Servo system of Y axis (kW) | 1 | |||
| Total power | kW | 15 | ||
| Overall dimensions | Length x Width x Height | 3800×2200×2780 | 4350×2800×2950 | 5800×2800×2950 |
